REST APIs - Part II
Now we've connected to HP OneView, let's step back and try the same with Veeam Backup & Recovery 9.0. Just to see what the difference is?!
You can find the document "Veeam Backup RESTful API" here:
https://www.veeam.com/backup-replication-resources.html
See Page 66 onwards for the beginners example.
With Veeam you can use a standard browser to do what POSTMAN does, or you can just use POSTMAN instead. Normally you can just issue GET commands with a browser but Veeam are clever people!

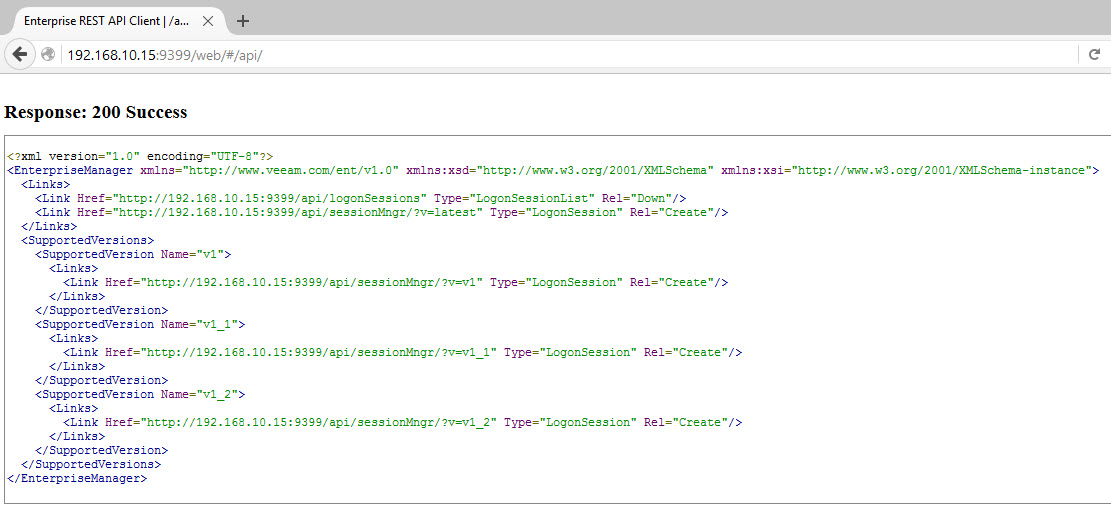

If you try the following URL first to check the API is running, it's actually a Windows Service you can view called "Veeam RESTful API Service": http://<Enterprise Server IP Address>:9399/web
You can see links up the top right for Tasks and Sessions but these will only give you a 401 error as you're not authenticated. Now, you can use the web browser to generate an authenticated session but you'll have to encode the username and password in base64. My preference is to switch to POSTMAN which makes this easier as it does the encoding for you!!
Here is the same GET request in POSTMAN:
Next click on the first sessionMngr link, in my case:
http://192.168.10.15:9399/api/sessionMngr/?v=latest"
This opens a new tab in POSTMAN, we'll make some changes to request our session ID and authenticate.
So, change the drop down for Authentication to show "Basic Auth" and change this to a POST command. Click Send and you should get the following:
The SessionID near the end is the key line we want. The URLs provided will are be useful for the next steps, to action particular things we want Veeam to show us or do.
To start with we'll follow the Beginner Guide and get a list of Veeam Backup Servers. You have a list of links, click on the one ending in /api/backupServers. Add the session ID into header as follows:
My Header is called "X-RestSvcSessionId" and I've pasted in the SessionID into the Value field. I've done a GET and received information on the single Backup Server in my Lab and some server specific URLs I can interact with.
My goal is to get the link to the backup template job and fire it up via an API. I know Veeam can schedule things but I figured this was an easy first step to try.
Click on the jobs link of type "JobReferenceList" and it opens a new tab again. Drop in the session ID once more and run the GET. Remember there's a 15 minute timeout so you may need to generate a new sessionID!!!
You can browse to a previous Tab to copy elements. Also the Disk save button to group and keep useful tabs/commands to replay later.
Now I can see a link for my "Backup Templates" job. I just have to call it out and tell the API I want to run it. Then monitor it for results. After that I can close the session.
Page 155 has the POST command syntax for starting a job. The bit at the end is the key part.
Request:
POST http://localhost:9399/api/jobs/78c3919c-54d7-43fe-b047-485d3566f11f?action=start
Request Header:
X-RestSvcSessionId NDRjZmJkYmUtNWE5NS00MTU2LTg4NjctOTFmMDY5YjdjMmNj
I just need to click on the supplied URL and add the header to my new tab and see if it works! Not quite as easy as that, remember to add "?action=start" to the end of the URL request to tell it what you actually want to do!!!
The Job is now running in Veeam:
Next, how do we get a job status to see if it's finished / failed / succeeded? You can check it's started with this:
Next we can check existing backup sessions:
http://192.168.10.15:9399/api/backupSessions
This gives you some details of jobs with timestamps against them. You can probably zone in on a particular session or use the reporting options but it's not as intuitive as the Veeam console so I'll leave those possibilities up to you!
The POSTMAN Client has "Collections" entities and the option to save those tabs you worked on under the Collections. This makes it easier to replay although the sessionID still needs to be changed but you can use the Authorization option to authenticate once off commands. I'm sure DEVs can script injecting a valid sessionID into their scripts!

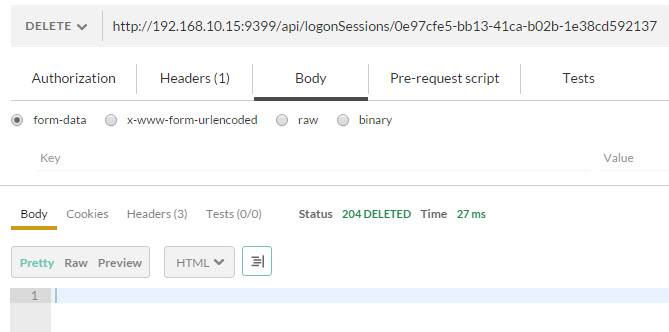

Now to delete the sessionID there is a DELETE command
http://localhost:9399/api/logonSessions/695f7cda-e4a6-4d9c-9603-8a6b05693c57
In my case:
That's it!
So why use this? Once you abstract the commands you use to interact with a Product and you have other Products which work this way such as OneView, you can create higher level relationships to automate things better.
How about querying a large replication task is completed before firing off a backup? Or pausing backups if a Datacenter or Host is running hot via the temperature alerts in OneView?
What tasks are performed manually regular enough to script and can you adapt the script so when a new vCenter, ESXi Host or VM is created the script can handle the change with dynamic queries?
That's just the tip of the iceberg! How about deploying a new ESXi Host automatically when OneView detects high resource consumption? Or when DevOps deployed Apps on CoreOS/Docker run slow triggering a build of more CoreOS VMs and sets up Veeam Replication for them automatically?
On REST in other applications, it's been a while since I looked at vCenter Orchestrator, now called vRealize Orchestrator. It's no longer baked into the vCenter deployment so you've to download, install and configure a vCO appliance. Then you create vCO workflows which you can call on with REST. In other words it's second hand integration, you need a person who understands vCO to setup all flows before you can call them with variables via your REST client. Not so hot but can be done.
Good articles that cover REST and vCO here:
http://www.vcoteam.info/
Enjoy!
